Cyclic peptides can be produced chemically by using solid-phase peptide synthesis, enzymatic chemistry, or expressed in microorganisms using DNA recombinant techniques.

Chemical synthesis of backbone-cyclized peptides

Cyclic peptides ranging from approximately 15-40 amino acids long can be readily synthesized using solid-phase peptide synthesis (SPPS). It involves two steps process: production of linear precursor and cyclization.

Linear precursor α-thioester peptides can be produced by both Boc-based and Fmoc-based chemistry. The most commonly used approach for the production of -thioester linear cyclotide precursors is using the 3-mercaptopropionamide linker (Boc-based), sulfonamide linker and 3,4-Diaminobenzoic (Dbz) linker (Fmoc-based).

The most commonly used method for the backbone cyclization of the linear cyclotide precursor employs an intramolecular NCL, in which the peptide sequence contains an N-terminal cysteine and an α-thioester group at the C-terminus (Fig. 1A).

Cyclization can be formed by direct chemical coupling of the Nα-amino and C-terminal carboxylic groups using uronium salts as coupling reagent.

Also enzymes such as proteases and trans-peptidases can be used for the production of backbone cyclized polypeptides.

Biological synthesis of backbone-cyclized peptides

Synthesis of backbone-cyclized polypeptides can be also produced using standard heterologous expression systems such as E. coli.

An intramolecular version of intein-mediated ligation (also called Expressed Protein Ligation (EPL)) can been used for the generation of many different types of backbone-cyclized polypeptides and proteins. It utilizes molecular cloning of DNA encoding linear precursors into heterologous expression systems. Once the linear precursor is expressed, it is cyclized via intermolecular NCL to form cyclic peptides (Fig. 1B).

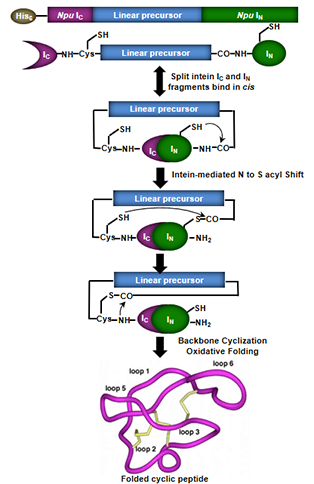

Protein trans-splicing is another way of producing cyclic peptides. It is a post-translational modification similar to protein splicing with the difference that the intein self-processing domain is split into two fragments (N-intein and C-intein). The split-intein fragments are not active individually, however, they can bind to each other with high specificity under appropriate conditions to form an active protein splicing or intein domain in trans. By rearranging the order of the intein fragments, i.e. by fusing the N- and C-intein fragments to the C- and N-terminus of the polypeptide to cyclize, the trans-splicing reaction results in the formation of a backbone-cyclized polypeptide (Fig. 2).

References

1. Li Y, Bi T, Camarero JA, Chemical and biological production of cyclotides. Nature. Adv Bot Res. 2015;76:271-303.
2. Camarero JA, Mitchell AR, Synthesis of proteins by native chemical ligation using Fmoc-based chemistry, Protein Pept Lett. 2005 Nov;12(8):723-8.
3. Jagadish K, Camarero JA, Recombinant Expression of Cyclotides Using Split Inteins, Methods Mol Biol. 2017;1495:41-55.
